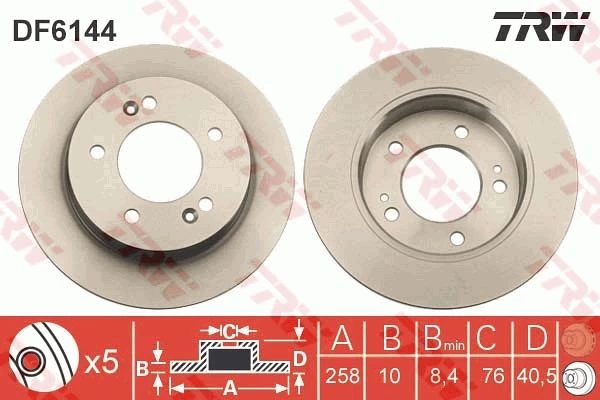

	Height (mm) Height (mm)	40.5
	Outer diameter (mm) Outer diameter (mm)	258
	Brake disc type Brake disc type	solid
	Brake disc thickness (mm) Brake disc thickness (mm)	10
	Num. of holes Num. of holes	5
	Bore Ø 1 (mm) Bore Ø 1 (mm)	12.5
	Bore Ø 2 (mm) Bore Ø 2 (mm)	14.3
	Colour Colour	black
	Bolt hole circle Ø (mm) Bolt hole circle Ø (mm)	114.3
	Min. thickness (mm) Min. thickness (mm)	8.4
	Surface Surface	painted
	Appr. stamp Appr. stamp	e190r-02c0190/0366
	Centering diameter (mm) Centering diameter (mm)	76
	Svhc Svhc	no information available, please contact the manufacturer!
	Weight Weight	3.79 kg
