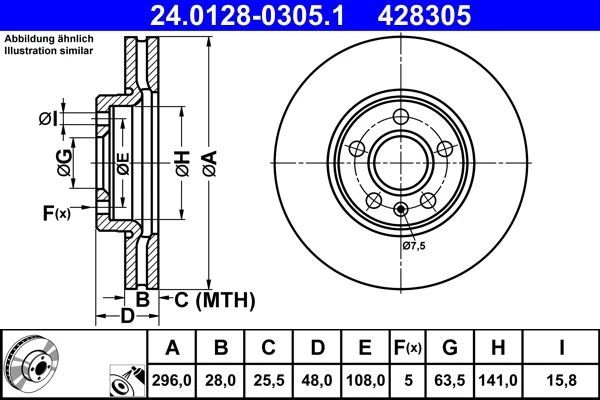

Product number: 24.0128-0305.1
|
EAN: 4006633461313
Properties
Alles weergeven
|
|
Height (mm)
Height (mm)
|
48.0 |
|
Outer diameter (mm)
Outer diameter (mm)
|
296.0 |
|
Inner diameter (mm)
Inner diameter (mm)
|
141.0 |
|
Brake disc type
Brake disc type
|
vented |
|
Brake disc thickness (mm)
Brake disc thickness (mm)
|
28.0 |
|
Num. of holes
Num. of holes
|
5 |
|
Bore Ø (mm)
Bore Ø (mm)
|
15.8 |
|
Bolt hole circle Ø (mm)
Bolt hole circle Ø (mm)
|
108.0 |
|
Min. thickness (mm)
Min. thickness (mm)
|
25.5 |
|
Surface
Surface
|
coated |
|
Appr. stamp
Appr. stamp
|
e1 90r-02c0115/1008 |
|
Centering diameter (mm)
Centering diameter (mm)
|
63.5 |
|
Machining
Machining
|
high-carbon |
|
Weight
Weight
|
8.72 kg |
