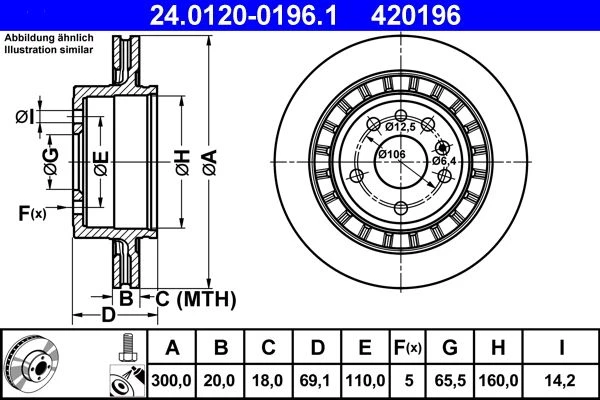

Product number: 24.0120-0196.1
|
EAN: 4006633244824
Properties
Alles weergeven
|
|
Height (mm)
Height (mm)
|
69.1 |
|
Outer diameter (mm)
Outer diameter (mm)
|
300.0 |
|
Inner diameter (mm)
Inner diameter (mm)
|
160.0 |
|
Brake disc type
Brake disc type
|
vented |
|
Brake disc thickness (mm)
Brake disc thickness (mm)
|
20.0 |
|
Num. of holes
Num. of holes
|
5 |
|
Bore Ø (mm)
Bore Ø (mm)
|
14.2 |
|
Supplementary article/info 2
Supplementary article/info 2
|
with bolts/screws |
|
Bolt hole circle Ø (mm)
Bolt hole circle Ø (mm)
|
110.0 |
|
Min. thickness (mm)
Min. thickness (mm)
|
18.0 |
|
Surface
Surface
|
coated |
|
Appr. stamp
Appr. stamp
|
e1 90r-02c0234/1092 |
|
Centering diameter (mm)
Centering diameter (mm)
|
65.5 |
|
Weight
Weight
|
6.86 kg |
